90350T Three-chucks Tube Laser Cutting Machine
- Home
- three chucks tube laser cutter
- Brand: Dmax CNC
- Model: DMX-90350T
- Working Area: Length9500mm maxФ360mm
- Power: 6KW/12KW/20KW
- Max acceleration: 0.5G
- Auxiliary Gas: Oxygen, Nitrogen, Air
- Applicable Material: Iron/CS/SS/Aluminum/Brass
- After-sale Service : Free Lifetime Technical Support online, Overseas service.

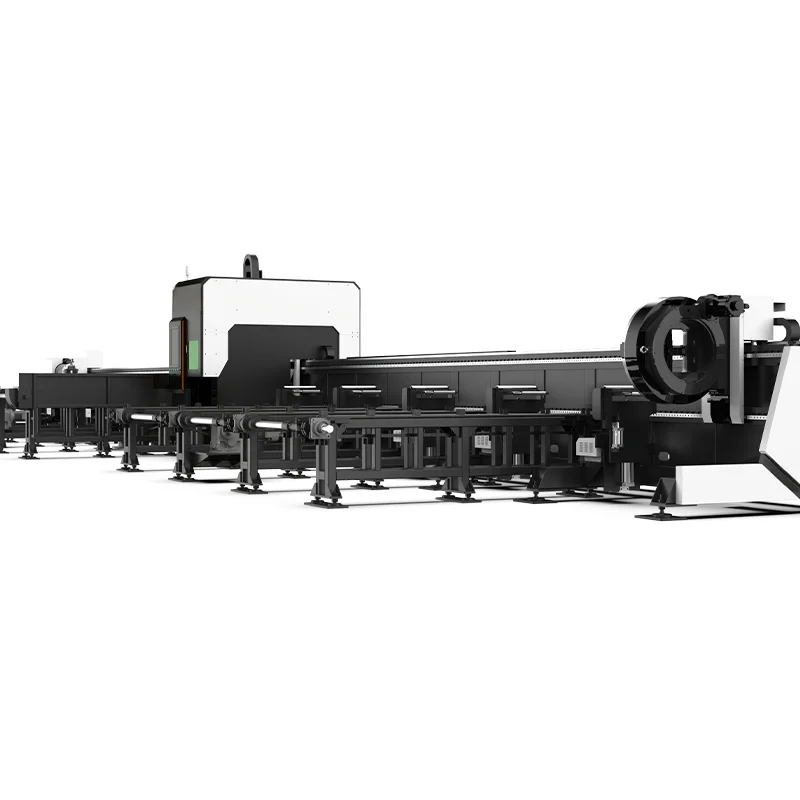

Triple-Chuck Laser Pipe Cutting Machine
- Triple-Chuck Fiber Laser Tube Cutter represents the pinnacle of engineering in the field of tube laser cutting equipment. It is specifically developed to address core challenges in extra-long tube processing, heavy-duty tube cutting, and high-precision tube fabrication.
- Featuring an innovative triple-chuck side-mount structural design, it perfectly overcomes the pain points of traditional single or dual-chuck laser tube cutters when processing tubes over 6 meters and extra-long tubes up to 12 meters, such as tail-end vibration, degraded cutting precision, and low material utilization.
- Professionally used for cutting round pipes, square pipes and other special-shaped metal pipes from materials such as ordinary carbon steel and stainless steel, with a thickness of 1-12mm. Applicable to Φ20-Φ350, square pipe 20-350, pipe length 6000mm, 12000mm and other pipe materials.
- It provides a complete precision tube processing solution for industries like large-scale steel structures, construction machinery, and heavy transport equipment manufacturing.
Three-chuck Heavy-duty Tube Laser Cutting Machine Advantages
Machine body

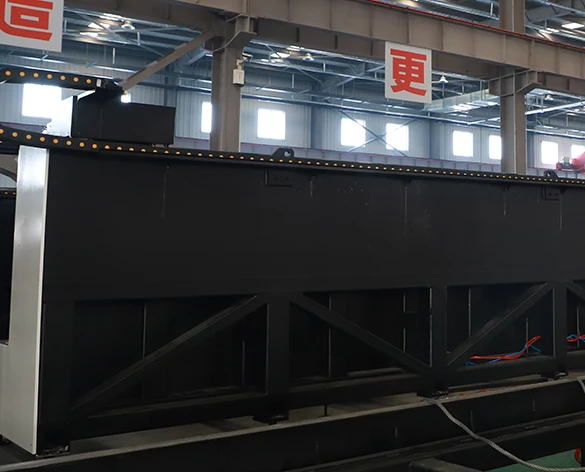

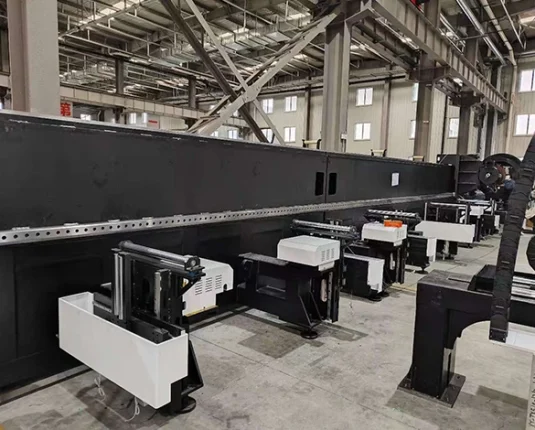

Side-hanging or Horizontal Structure, Stacked Welded Integrated Bed. High strength machine tool, adopting 600C high temperature an-nealing, with integrated machine rigidity. Shot blasting, to completely remove oil and rust, while eliminating residual stress. The overall machanical structure has small deformation and low vibration, ensuring cutting accuracy.

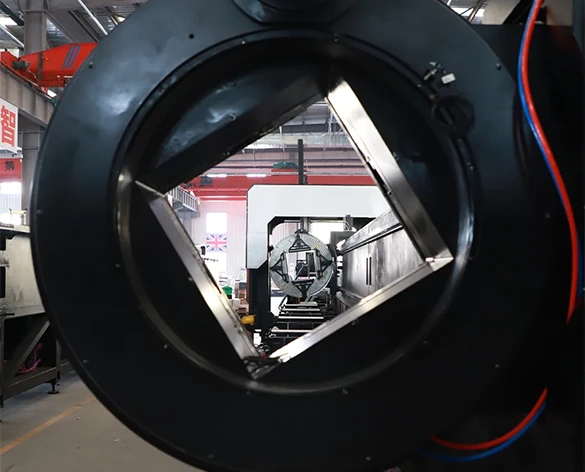

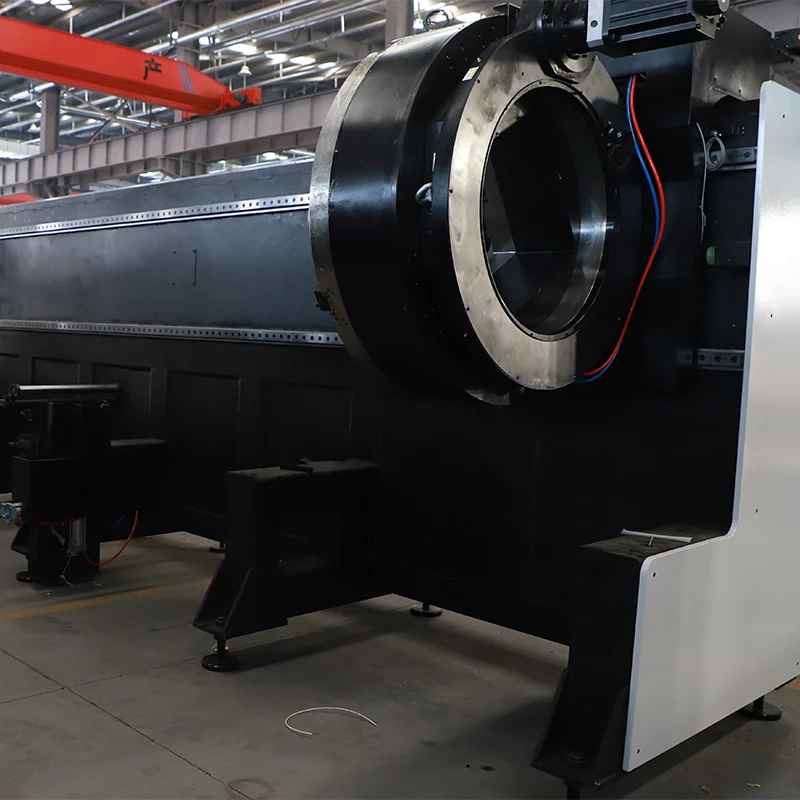

Pneumatic Chuck
Secure Clamping: The chuck securely holds the pipe in place, ensuring it remains stable during cutting, thereby improving cutting accuracy and stability. Precision Cutting: Stable clamping and highly adjustable clamping jaws enable the chuck to achieve precise cutting, ensuring cutting accuracy and consistency. Ease of Operation: Most pipe cutting machine chucks are designed for simplicity, making them easy to operate and adjust. Operators can quickly get started and Machine chuck perform necessary adjustments and maintenance.

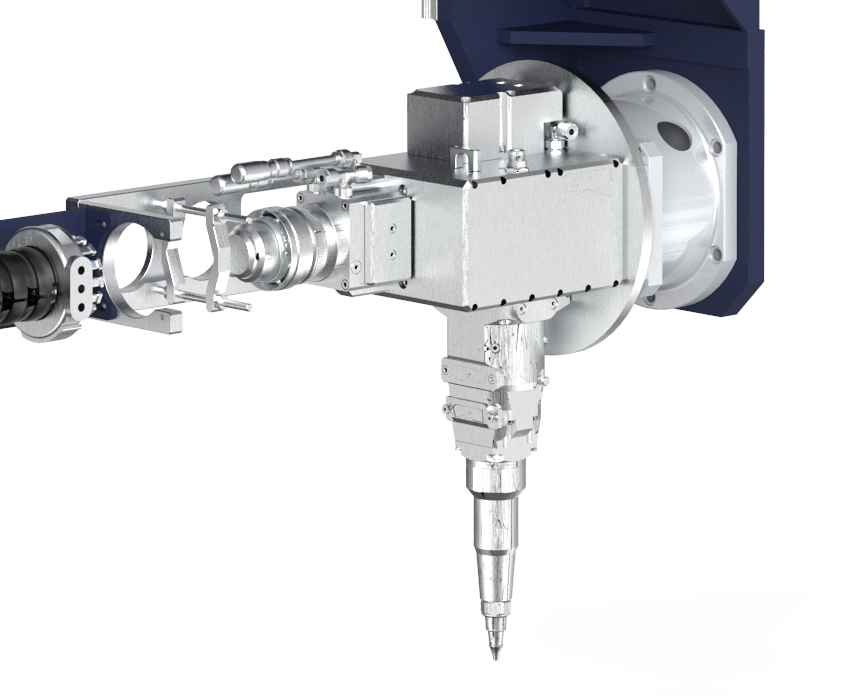

Laser Head
High precision cutting: Dmax laser cutter equipment adopt BOCI/Raytools/Precitec laser head with the advanced technology to achieve high precision cutting and ensure cutting quality. Strong reliability:After rigorous testing and verification, it has high reliability, reducing failure rate and maintenance costs.
High safety: It has safety protection function to ensure the safety of operators.
Laser Source
High precision: Provides high-precision cutting capabilities
High speed: Fast processing speed and improved production efficiency.
Non-contact processing:Will not damage the wrorkpiece surface, suitable for applications that require high surface quality.
Flexibility: Processing of various shapes and sizes can be achieved, suitable for different process needs.
Automation: It can be integrated with theautomation system to improve the automation and intelligence level of the production line.
Control System
Comprehensive solutions: Provide comprehensive cutting solutions to meet the needs of different industries.
High efficiency: Using advanced laser technology and cutting heads to achieve high efficiency processing and production.
High precision: High precision cutting ensures processing quality and accuracy.
Flexibility: Supports the processing of avariety of materials and shapes, has strong adaptability and can meet diverse processing needs.
Easy to operate: The operation interface is friendly easy to operate and control, and reduces the difficulty of operation.
Guide Rail & Rack
High precision:ensure stable and accurate movementtrajectory.
High rigidity:bear larger loads.
Wear resistance: maintain long term stable operation.
Low friction:reduces energy loss.
Good stability: performs well in harsh environments
Easy maintenance: simple structure, low maintenance cost.

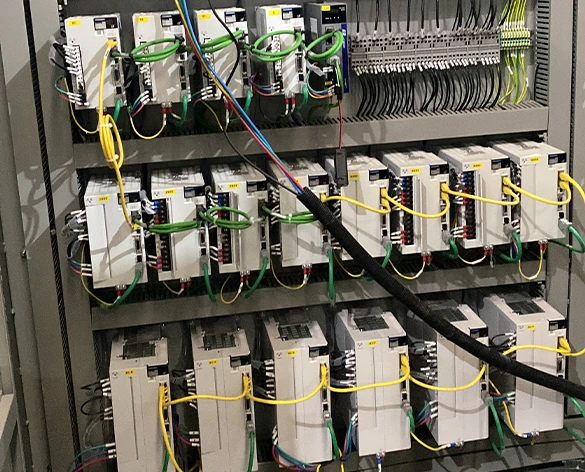

Motor & Driver
Precision control:Provides high-precision position speed and torque control.
High performance: With fast response and high dynamic performance, suitable for various complex motion control applications.
Stability:Stable operating characteristics can ensure stable production processes and consistent product quality.
Flexibility:A variety of movement trajectories and movement modes can be achieved to adapt to diverse production needs.
Reliability: After rigorous testing and verification, it has high reliability and stability, reducing the failure rate.
Water Chiller
Equipment protection: extende quipment life and reduce failurerate.
Energy saving and environmental protection: Reduce energy consumption and reduce impact on the environment.
Improve production efficiency: Keep equipment within the optimal operating temperature range to improve productione fficiency.
Stability: Provide a stable industrial production environment.
Flexibility: Temperature and flow can be adjusted as needed.
Discharging Devices
The cylinder-assisted tipping plate unloading device, combined with a material collection cart, enables automatic anloading, which is intelligent, efficient, saves manpower, and effectively improves processing efficiency.
Tube Laser Cutter Applications
The metal tube laser cut machine applicable industries include ship building, new energy, automobile manufacturing, construction machinery, steel outsourcing, building decoration, furniture, and home appliances.
MACHINE BED PRODUCTION PROCESS
1
Precision carbon dioxide welding
The bed adopts a pipe welding or plate welding structure to ensure sufficient rigidity and stability.The weld height is up to 10mm, and the weld length is 15cm, leaving 15cm of blank space. The plate welding adopts the mortise and tenon structure and increases the number of reinforcing ribs to provide more reliable support for the bed
2
600°C high temperature annealing
The bed is annealed to remove internal stress, ensure its stability, and maintain cutting accuracy over time.
3
Sand blasting
Surface treatment: The surface of the bed has been specially treated, such as shot blasting, to completely remove oil and rust, while eliminating residual stress. This helps the workpiece to maintain a stable position during the cutting process and avoid cutting errors caused by uneven surfaces
4
Painting process
After the bed is shot blasted, the first coat of primer and the first coat of topcoat are sprayed. Then the bed is machined, including tapping and cleaning, and then the second coat of topcoat is sprayed. This ensures the beauty and durability of the bed, while improving the quality and life of the overall equipment.
5
Gantry milling machine machining
The factory is equipped with multiple CNC milling machines, which can meet its core requirements of "high precision, multiple varieties, mass production, and machining of complex structures".
6
Powder painting process
Sheet metal cover adopts powder painting, and now it can be choosed to be used for machine bed frame as well. It can effectively isolate corrosive substances such as air, moisture, acids, alkalis, and salts, providing good protection for the substrate.
Machine Body Features
Extremely rigid with outstanding resistance to deformation. Excellent precision retention, no drift even after long-term use. Superior shock absorption performance, improving the quality of machined surfaces. Strong thermal stability, adaptable to complex working conditions. High load-bearing capacity, suitable for various machining scenarios. Long service life, reducing overall costs
WHY CHOOSE US
Rich experience
15+ years of experience inthe production of laser cutting machines, laser welding machines in China. Serving more than 50countries , such as Europe, United States , Australia, Canada , Germany, etc
Good service
On time delivery and quality assurance.After sales follow-upservice,timely and properly handle problems.
Rich product range
Our products main include plate laser cutting machine, tube laser cutting machines, laser welding machines, laser cleaning machines, parts and laser machine accessories and many other products
Good price and quality
We have our own factory to ensure that we offer affordable prices and quality products
FAQ: Fit Answers Quickly
Of course. Please contact us for more details.
Of course. As a manufacturer, we can offer not only favorable prices but also high-quality products and services.
Our quality control department is a very important team in our company, and we have test records for every step. We can only ship the machine after our quality inspector stamps the order.
1 piece, but larger orders offer more discounts.
Please provide us with your machine requirements, and our team will give you professional advice.
The main parts that need to connect is laser source,water chiller and controller. We have detailed manual and videos, if you don’t understand, our after-sales service people can guide you by online video
Sure, we’ll provide some wearing parts along with the laser machines, and after that, we can supply the spare parts in cost price
The warranty of the machine is 2 years and the laser generator is 2 years. (Excluding wearing parts )
