描述

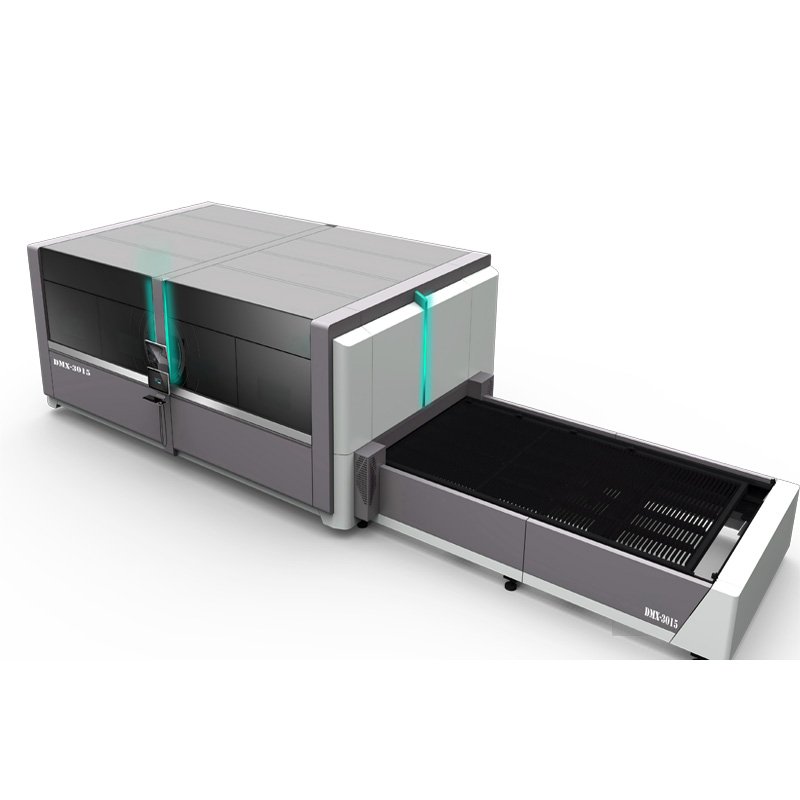

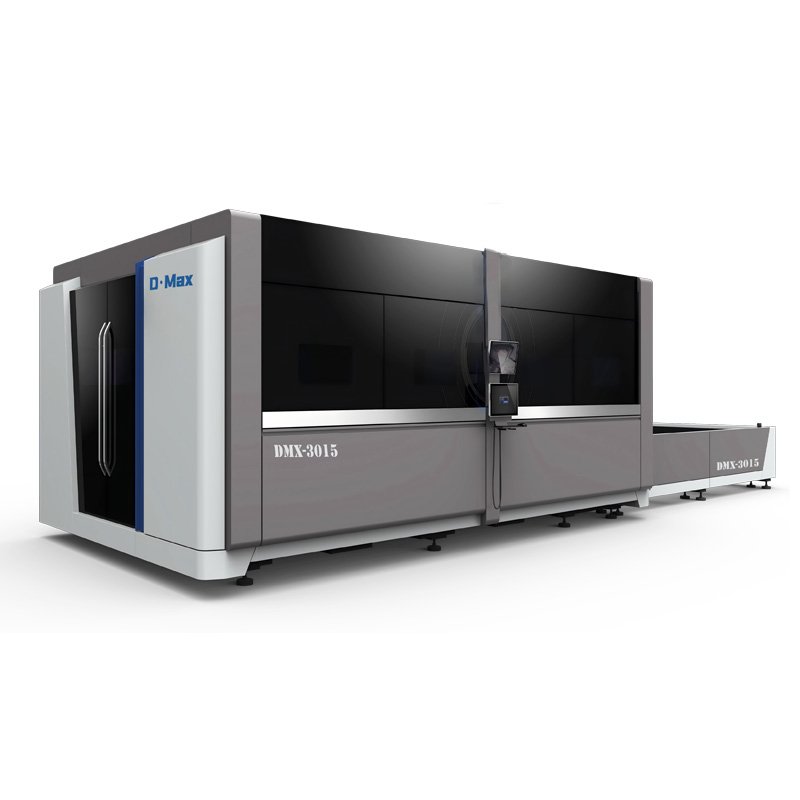

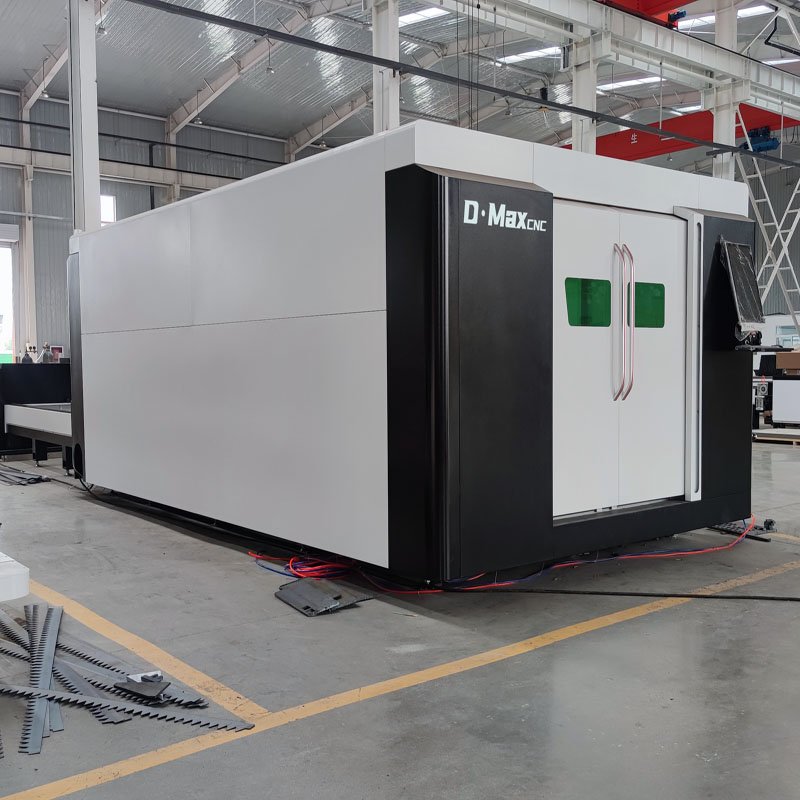

- Full Cover-enclosed fiber laser metal cutting machine adopts a fully enclosed laser protective cover, equipped with a special laser protective glass observation window, equipped with a scientific dust recovery and purification treatment system, the overall appearance is beautiful, safe and environmentally friendly;
- At the same time, it is equipped with a special exchange platform as standard, and the exchange speed is fast. Convenient loading and unloading, high processing efficiency;
- It is a high-end special equipment for plate laser cutting, and it is the product of choice for modern manufacturing enterprises.
Details
Machine body
Offers high quality laser machine body
Plate welded heavy duty structure provides more reliable support for the bed(Tube welded structure for option)
High strength machine tool, adopting 600C high temperature an-nealing, with
integrated machine rigidity
Shot blasting, to completely remove oil and rust, while eliminating residual stress
The overall machanical structure has small deformation and low vibration, ensuring
cutting accuracy.
Cross beam
Aluminium cross beam
High strength:Internal reinforcement increases the strength and rigidity of the beam and improves the equipment efficient dynamic performance.
Light weight: Ensure the high-speed operation of the laser cutting machine while ensuring the accuracy and efficiency of cutting. Corrosion resistance:Silver powder spraying enhances corrosion
resistance and anti-oxida-tion, extends service life and makes the beam look smooth and bright, improve overall aesthetics.
Laser Head
BOCI /Raytools laser head
High precision cutting: Adopt advanced technology to achieve high precision cutting and ensure cutting quality.
High-speed cutting: With fast cutting speed, it improves production efficiency.
Strong reliability:After rigorous testing and verification, it has high reliability, reducing failure rate and maintenance costs.
High safety: It has safety protection function to ensure the safety of operators.
Laser Source
High precision: Provides high-precision cutting capabilities
High speed: Fast processing speed and improved production efficiency.
Non-contact processing:Will not damage the wrorkpiece surface, suitable for applications that require high surface quality.
Flexibility: Processing of various shapes and sizes can be achieved, suitable for different process needs.
Automation: It can be integrated with theautomation system to improve the automation and intelligence level of the production line.
Control System
Comprehensive solutions: Provide comprehensive cutting solutions to meet the needs of different industries.
High efficiency: Using advanced laser technology and cutting heads to achieve high efficiency processing and production.
High precision: High precision cutting ensures processing quality and accuracy.
Flexibility: Supports the processing of avariety of materials and shapes, has strong adaptability and can meet diverse processing needs.
Easy to operate: The operation interface is friendly easy to operate and control, and reduces the difficulty of operation.
Guide Rail & Rack
High precision:ensure stable and accurate movementtrajectory.
High rigidity:bear larger loads.
Wear resistance: maintain long term stable operation.
Low friction:reduces energy loss.
Good stability: performs well in harsh environments
Easy maintenance: simple structure, low maintenance cost.
Motor & Driver
Precision control:Provides high-precision position speed and torque control.
High performance: With fast response and high dynamic performance, suitable for various complex motion control applications.
Stability:Stable operating characteristics can ensure stable production processes and consistent product quality.
Flexibility:A variety of movement trajectories and movement modes can be achieved to adapt to diverse production needs.
Reliability: After rigorous testing and verification, it has high reliability and stability, reducing the failure rate.
Water Chiller
Equipment protection: extende quipment life and reduce failurerate.
Energy saving and environmental protection: Reduce energy consumption and reduce impact on the environment.
Improve production efficiency: Keep equipment within the optimal operating temperature range to improve productione fficiency.
Stability: Provide a stable industrial production environment.
Flexibility: Temperature and flow can be adjusted as needed.
Exhausting system
Partition dust removal is an effective dust removal method. It divides the cutting area into several parts and installs air ducts on each part. Through the CNC system and control components, the air ducts in the cutting area are opened during cutting, thereby achieving accurate dust removal in the cutting area.
Fully Enclosed fiber laser cutting machine
MACHINE BED PRODUCTION PROCESS
1
Precision carbon dioxide welding
The bed adopts a pipe welding or plate welding structure to ensure sufficient rigidity and stability.The weld height is up to 10mm, and the weld length is 15cm, leaving 15cm of blank space. The plate welding adopts the mortise and tenon structure and increases the number of reinforcing ribs to provide more reliable support for the bed
2
600°C high temperature annealing
The bed is annealed to remove internal stress, ensure its stability, and maintain cutting accuracy over time.
3
Sand blasting
Surface treatment: The surface of the bed has been specially treated, such as shot blasting, to completely remove oil and rust, while eliminating residual stress. This helps the workpiece to maintain a stable position during the cutting process and avoid cutting errors caused by uneven surfaces
4
Painting process
After the bed is shot blasted, the first coat of primer and the first coat of topcoat are sprayed. Then the bed is machined, including tapping and cleaning, and then the second coat of topcoat is sprayed. This ensures the beauty and durability of the bed, while improving the quality and life of the overall equipment.
5
Gantry milling machine machining
The factory is equipped with multiple CNC milling machines, which can meet its core requirements of "high precision, multiple varieties, mass production, and machining of complex structures".
6
Powder painting process
Sheet metal cover adopts powder painting, and now it can be choosed to be used for machine bed frame as well. It can effectively isolate corrosive substances such as air, moisture, acids, alkalis, and salts, providing good protection for the substrate.
7
Machine Body Features
Extremely rigid with outstanding resistance to deformation. Excellent precision retention, no drift even after long-term use. Superior shock absorption performance, improving the quality of machined surfaces. Strong thermal stability, adaptable to complex working conditions. High load-bearing capacity, suitable for various machining scenarios. Long service life, reducing overall costs
WHY CHOOSE US
Rich experience
15+ years of experience inthe production of laser cutting machines, laser welding machines in China. Serving more than 50countries , such as Europe, United States , Australia, Canada , Germany, etc
Good service
On time delivery and quality assurance.After sales follow-upservice,timely and properly handle problems.
Rich product range
Our products main include plate laser cutting machine, tube laser cutting machines, laser welding machines, laser cleaning machines, parts and laser machine accessories and many other products
Good price and quality
We have our own factory toensure that we offeraffordable prices and qualityproducts
