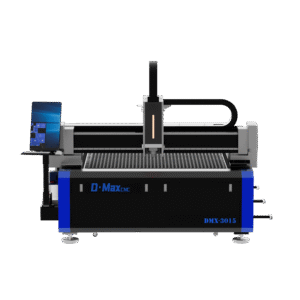

Fiber Laser Cutting Machine

#Heavy duty structure single table
#Working area: 3050*1530mm
#Aluminum cross beam

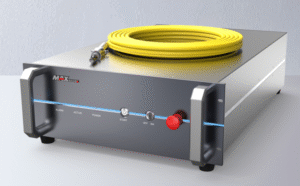

#Laser source: 3KW MAX
#Cutting head: BOCI BLT310
#Controlling system: Cypcut2000E
#Servo motor: Inovance servo motors 1.3KW*2+750W+400W
#Rail:Italy PEK/ Taiwan HIWIN
#Servo reducer:Italy Motovario
#Gear rack: Taiwan T-WIN/YYC
#Electronic components:France Schneider
#Water chiller:Hanli 3KW
#Air conditioner for electric cabinet
#Zoned dust removal device
#Exhaust fan
#Proportional Valve:Japan SMC (O2 gas pressure regulater)
#Weight: 2500KG

Machine details

Machine frame

Tube welded heavy duty structure provides more reliable support for the bed(plate welded structure for option)
High strength machine tool, adopting 600C high temperature an-nealing, with
integrated machine rigidity
Shot blasting, to completely remove oil and rust, while eliminating residual stress
The overall machanical structure has small deformation and low vibration, ensuring
cutting accuracy.
High precision: Provides a stable platform to ensurecutting accuracy and consistency.
Good stability:reduce vibration, improve cuttingquality and equipment life.
The middle cross brace can be used to place refractory bricks, suitable for highpower cutting

High precision: Provides high-precision cutting capabilities
High speed: Fast processing speed and improved production efficiency.
Non-contact processing:Will not damage the wrorkpiece surface, suitable for applications that require high surface quality.
Flexibility: Processing of various shapes and sizes can be achieved, suitable for different process needs.
Automation: It can be integrated with theautomation system to improve the automation and intelligence level of the production line.
